Re: Wanganui, Mcsorely 442E / MX5

Post by Wanganui7 » Thu Feb 22, 2018 6:56 pm

Chassis hanging up to be powder primed
Attachments
Priming

Wanganui7
Posts: 38
Joined: Sat Dec 21, 2013 11:22 pm
Location: Wanganui NZ

Re: Wanganui, Mcsorely 442E / MX5

Post by Wanganui7 » Fri Feb 23, 2018 9:05 pm

Picked up bits from power coaters today. Chassis, suspension arms, pedals and other brackets. Nice paint job. Next is start cutting and fitting alloy panels.
Attachments
Powder coated bits ( ghost grey )

Wanganui7
Posts: 38
Joined: Sat Dec 21, 2013 11:22 pm
Location: Wanganui NZ

Re: Wanganui, Mcsorely 442E / MX5

Post by Wanganui7 » Sun Mar 04, 2018 1:54 pm

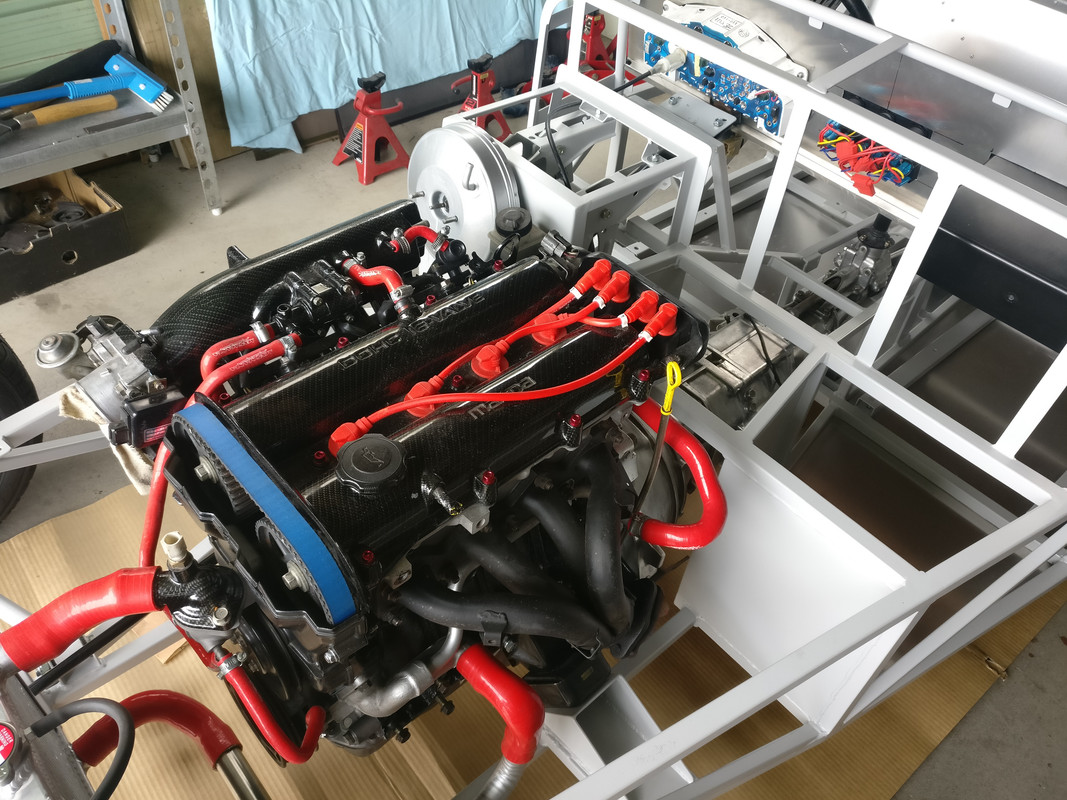

Finished assembling motor and gearbox today. Cleaned, new boots, seals gaskets clutch and machined flywheel. Also started the alloy panels. Bottom, rear bulkhead and console.
Attachments
First alloy panel
Assembled motor, gearbox

Wanganui7
Posts: 38
Joined: Sat Dec 21, 2013 11:22 pm
Location: Wanganui NZ

Re: Wanganui, Mcsorely 442E / MX5

Post by Wanganui7 » Sat Mar 10, 2018 4:09 pm

Made good progress this morning riviting on the bottom and bulkhead panels. Wife's nimble fingers putting rivits in holes for me. Have used 4 mm sealed alloy rivits at 50 mm spacing.
Attachments
Just a thousand to go
Borrowed air riviter a must
Lots rivits

Wanganui7
Posts: 38
Joined: Sat Dec 21, 2013 11:22 pm
Location: Wanganui NZ

Re: Wanganui, Mcsorely 442E / MX5

Post by Wanganui7 » Sat Mar 10, 2018 4:27 pm

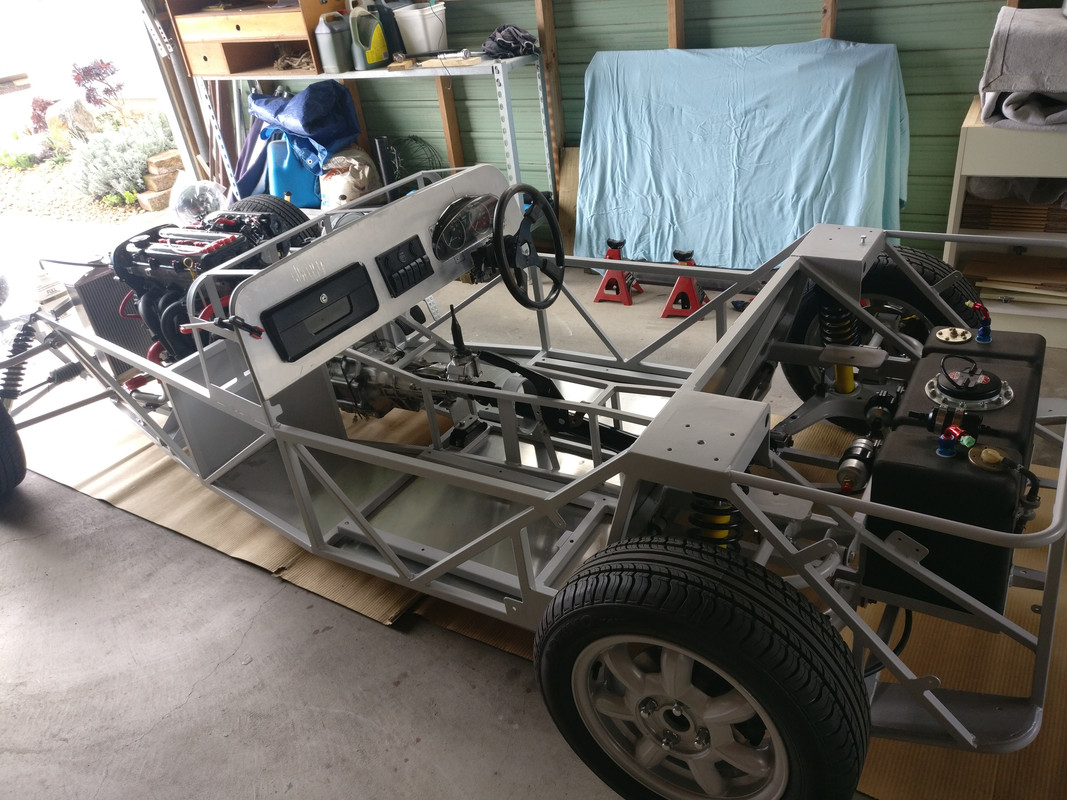

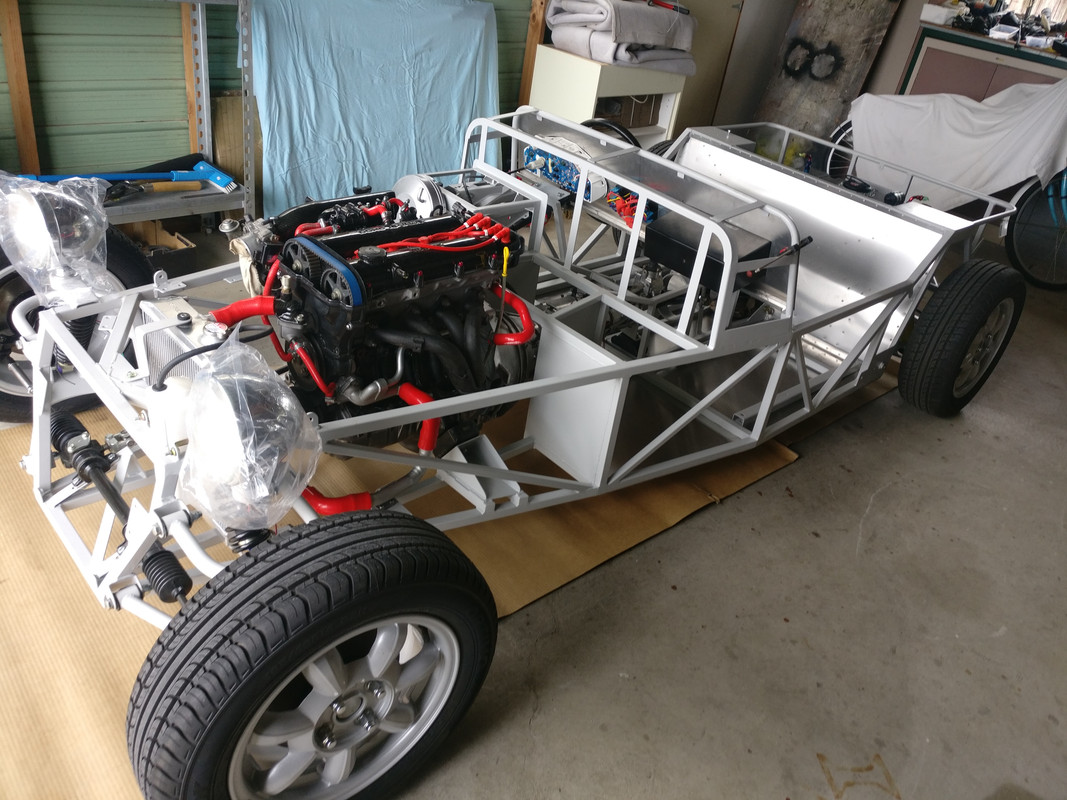

Flipped car over. Still lite enough for one person to handle. Fitted rear suspension and got the wheels on. Woohoo!
Attachments
Side on
Wheels on
Rear suspension

Wanganui7
Posts: 38
Joined: Sat Dec 21, 2013 11:22 pm
Location: Wanganui NZ

Re: Wanganui, Mcsorely 442E / MX5

Post by Wanganui7 » Sun Mar 11, 2018 3:27 pm

On fitting the suspension arms bushes found the powder coating has caused the crush tubes to be a very tight fit. Ran a 3/4 inch drill bit, a fraction larger than the 19 mm crush tubes, through the bushes for the perfect fit.
Attachments
That'll loosen it.

Wanganui7
Posts: 38
Joined: Sat Dec 21, 2013 11:22 pm
Location: Wanganui NZ

Re: Wanganui, Mcsorely 442E / MX5

Post by Wanganui7 » Mon Mar 26, 2018 9:14 pm

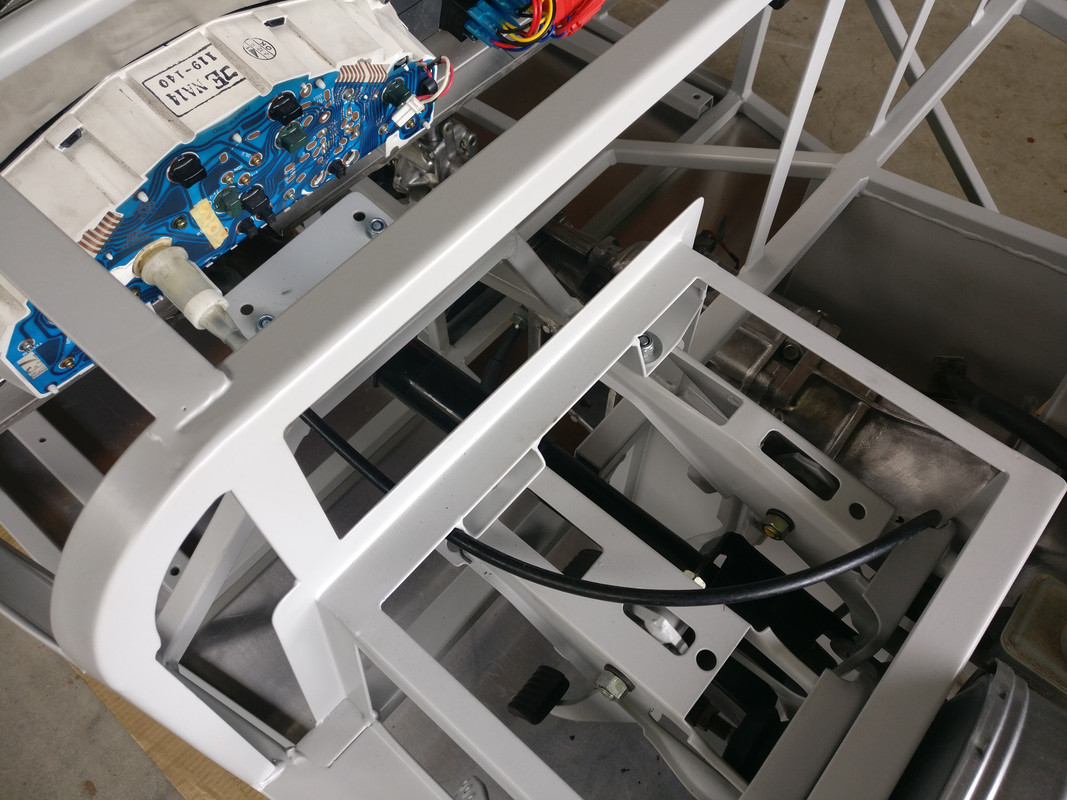

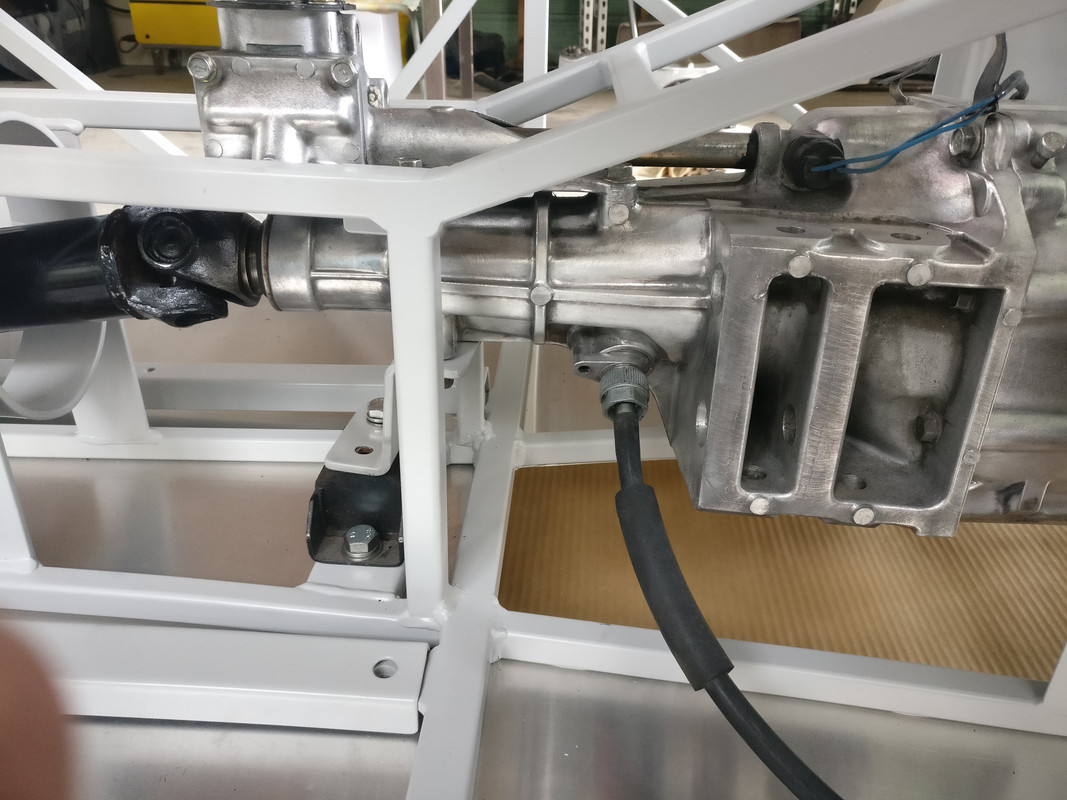

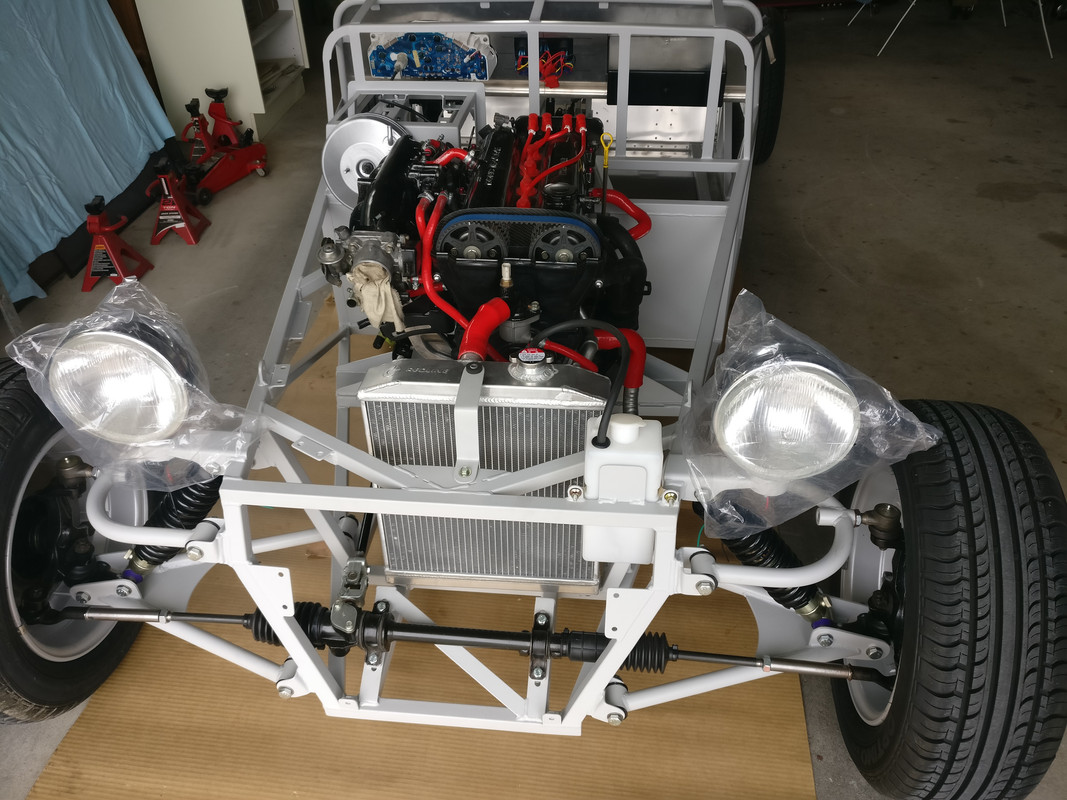

Have carried on assembling front suspension this week, dropping in motor and gearbox and looking at brake, clutch and speedo lines. Will use the standard mx5 speedo cable and bring into the footwell. Is the easy route up to the instrument cluster without excessive bends to the cable. Will fold up a false floor to cover the cable later.






Wanganui7
Posts: 38
Joined: Sat Dec 21, 2013 11:22 pm
Location: Wanganui NZ

Re: Wanganui, Mcsorely 442E / MX5

Post by Wanganui7 » Thu Mar 29, 2018 7:13 pm

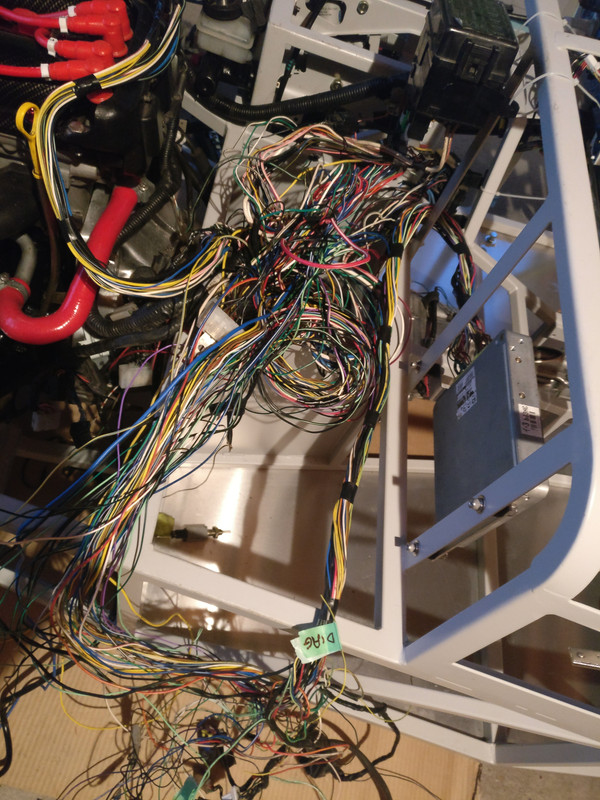

The past few days got the old wiring loom out of the box I put it in two years ago. Laid it out on the ground to make sence of it. First rubber mounted the standard engine computer , pluged everthing in, then proceeded to split the loom in two, engine and lighting to make things easier for myself. Working so far but I'm sure they were designed to send you insane.
