Re: Bugatti Project

Post by 7ish » Thu Aug 11, 2016 12:40 pm

How do you get away with storing them in your lounge??

Inspiring work, well done!
7ish

User avatar
Not-a-Number
Paid Member
Posts: 880
Joined: Tue Sep 13, 2011 12:54 pm

Re: Bugatti Project

Post by Not-a-Number » Thu Aug 11, 2016 3:45 pm

Since they are worth more than the lounge I'm allowed to keep them in there! :lol:

User avatar
Not-a-Number
Paid Member
Posts: 880
Joined: Tue Sep 13, 2011 12:54 pm

Re: Bugatti Project

Post by Not-a-Number » Wed Aug 31, 2016 10:06 pm

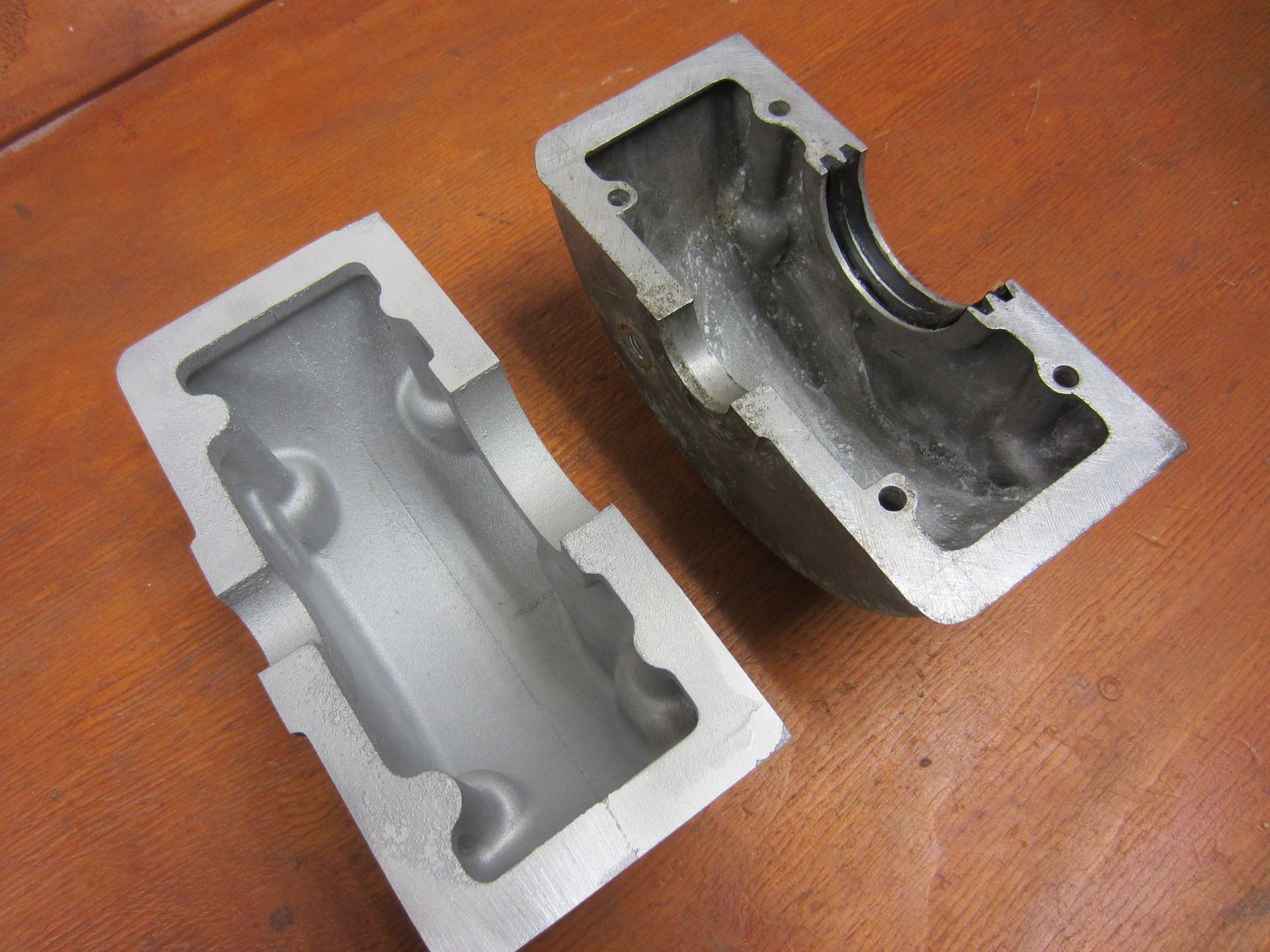

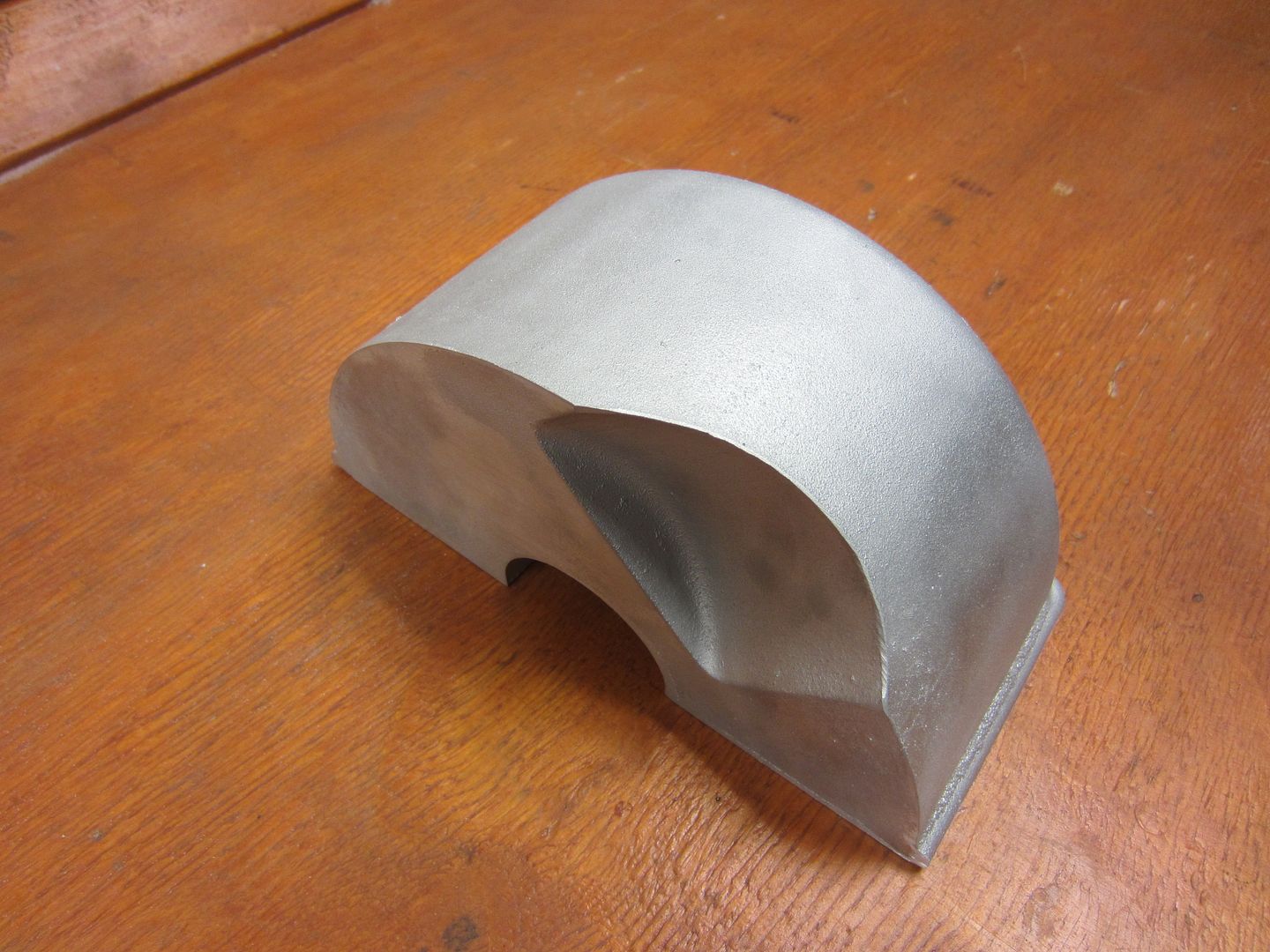

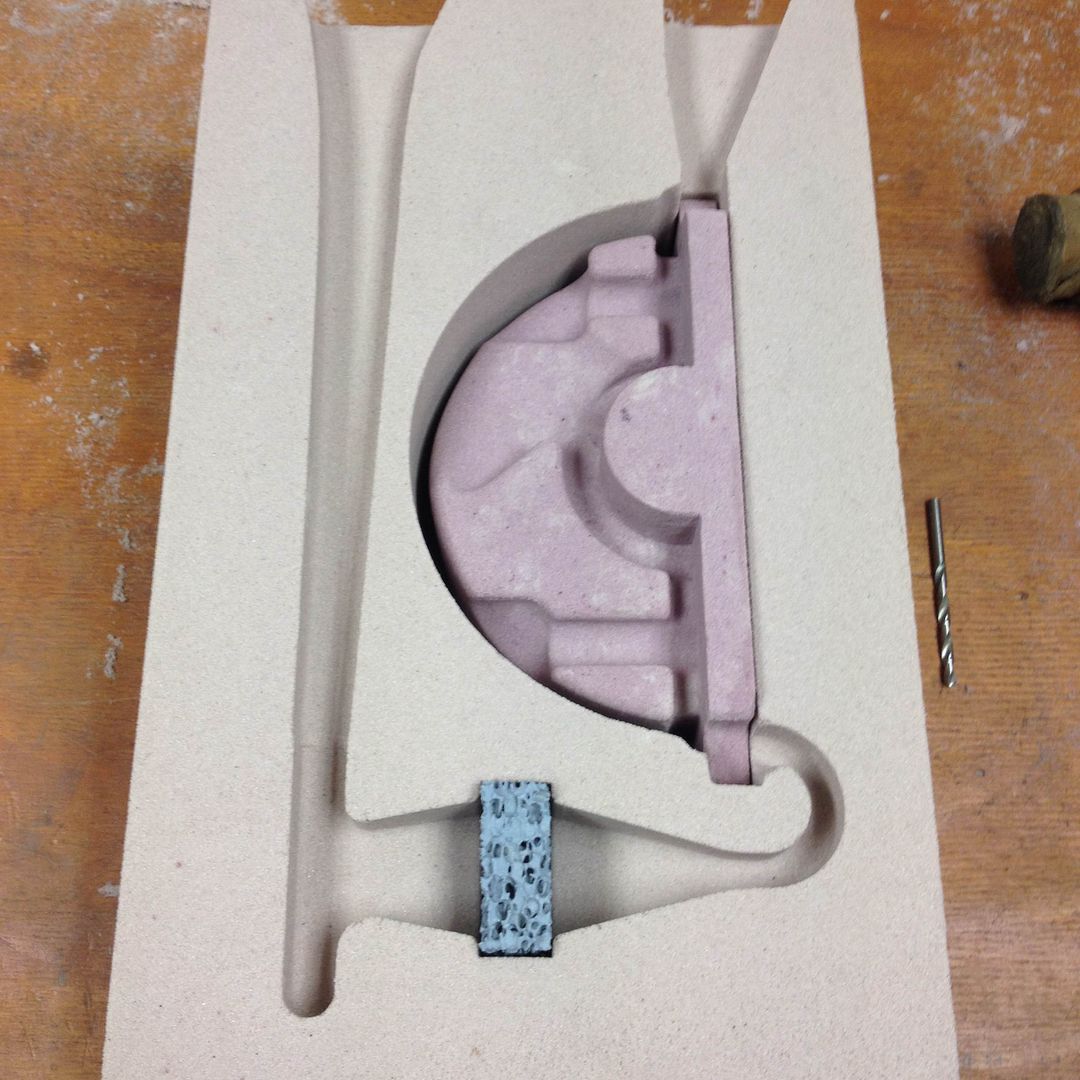

First ali bit cast! Right hand cam gear cover.











User avatar
Not-a-Number
Paid Member
Posts: 880
Joined: Tue Sep 13, 2011 12:54 pm

Re: Bugatti Project

Post by Not-a-Number » Tue Sep 06, 2016 9:40 pm

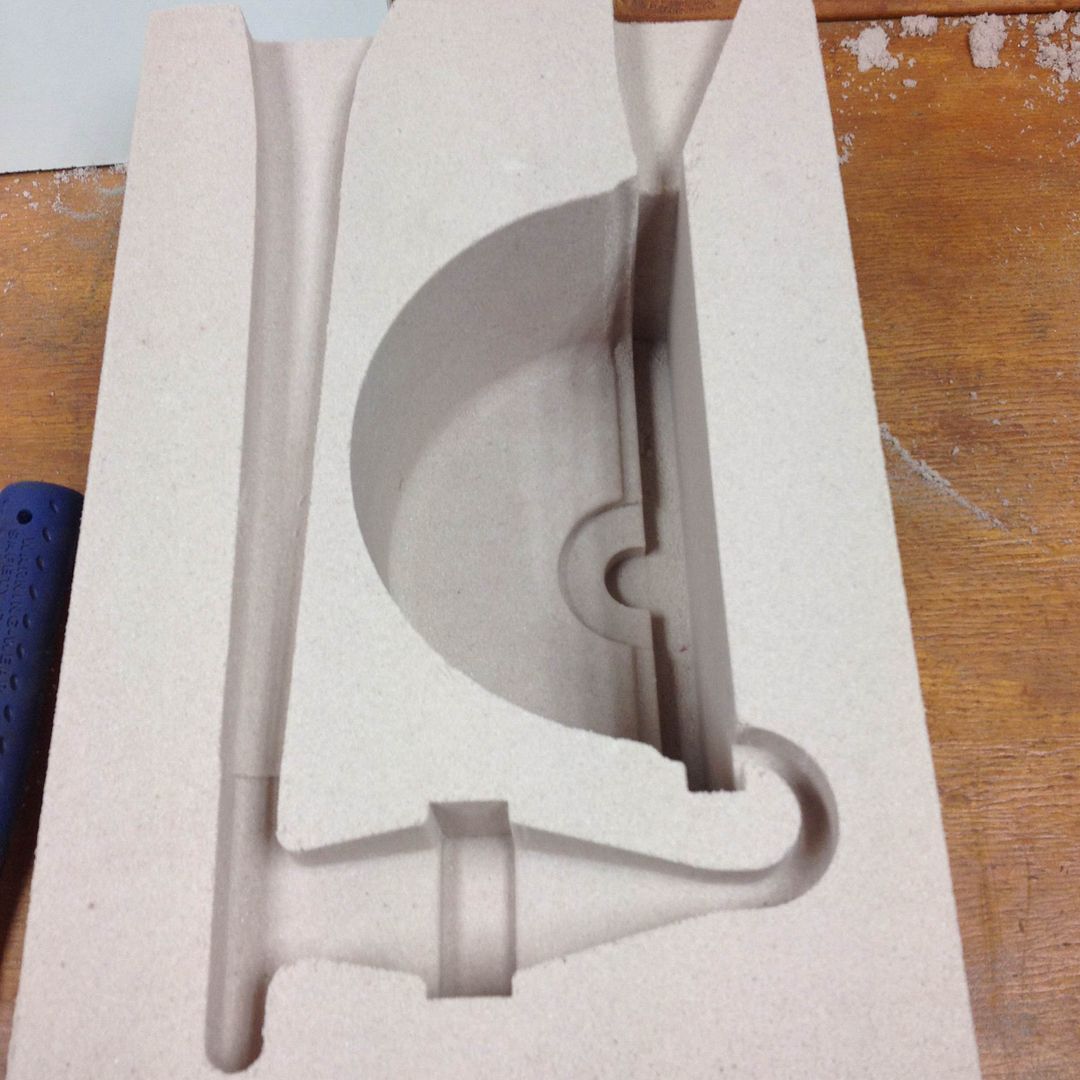

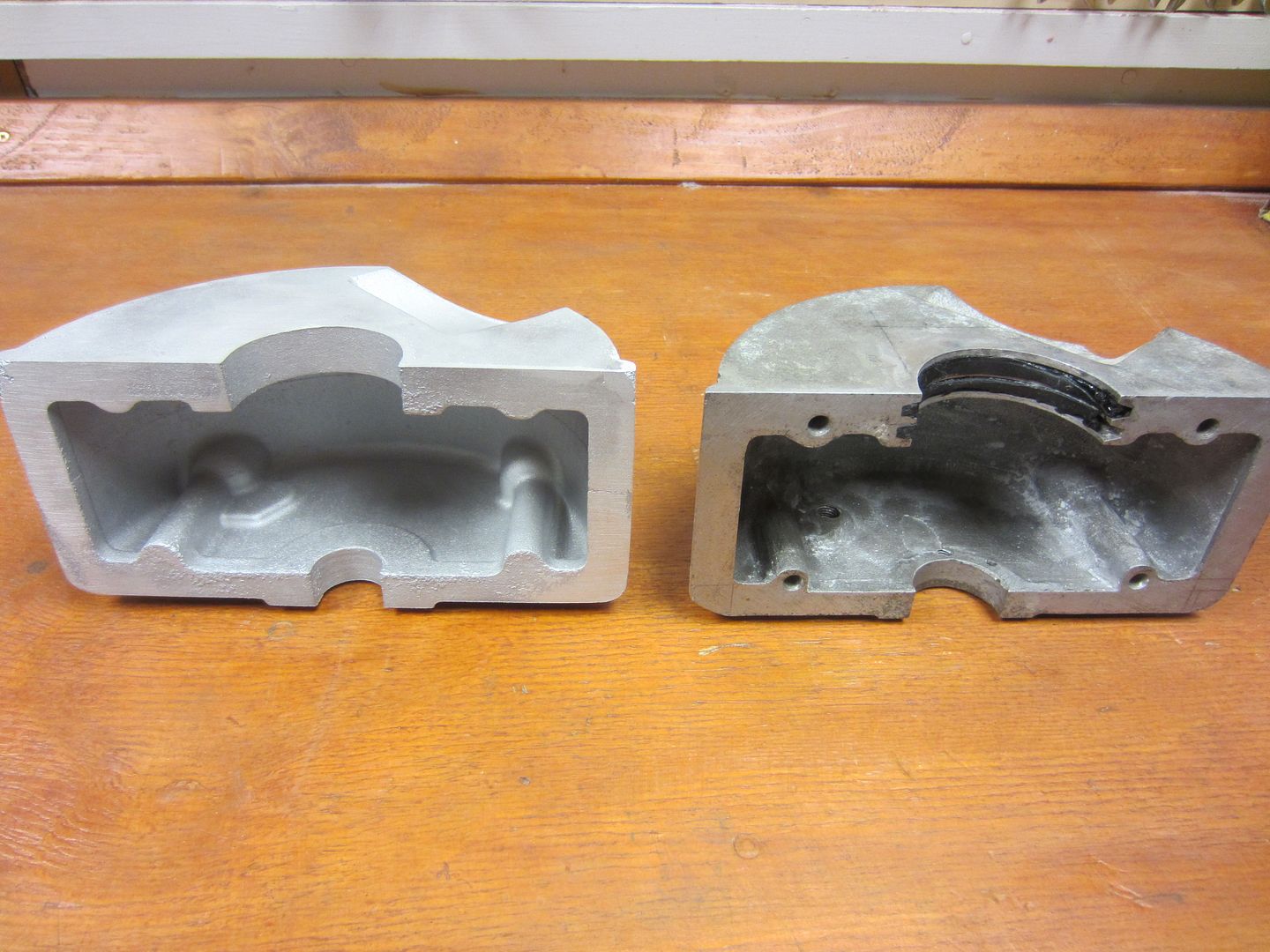

The weekends work. Got two more cast for got luck.




User avatar
Not-a-Number
Paid Member
Posts: 880
Joined: Tue Sep 13, 2011 12:54 pm

Re: Bugatti Project

Post by Not-a-Number » Sat Dec 31, 2016 12:31 pm

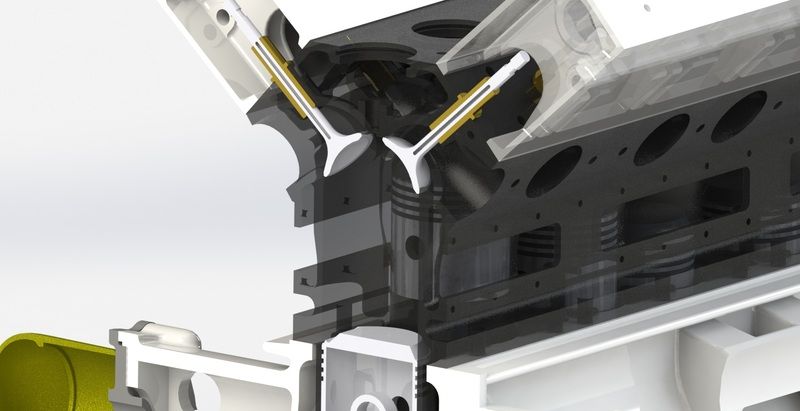

Bit of CAD. Slowly slowly getting there. Most major parts are detailed. A lot to go.





User avatar
Not-a-Number
Paid Member
Posts: 880
Joined: Tue Sep 13, 2011 12:54 pm

Re: Bugatti Project

Post by Not-a-Number » Sat Dec 31, 2016 12:51 pm

A real crank. 55kg beast!


User avatar
Not-a-Number
Paid Member
Posts: 880
Joined: Tue Sep 13, 2011 12:54 pm

Re: Bugatti Project

Post by Not-a-Number » Tue Jan 24, 2017 5:17 pm

Some Spring hangers for a Bugatti Atlantic

The real one

Some CAD

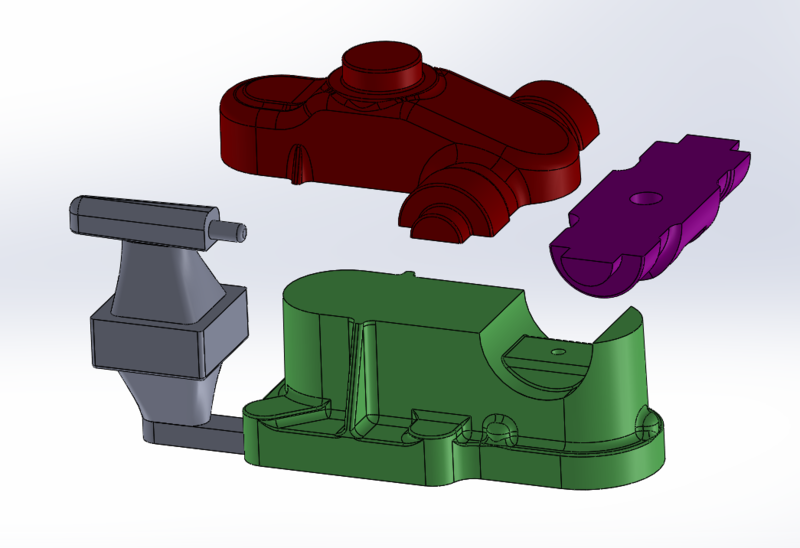

CAD Patterns

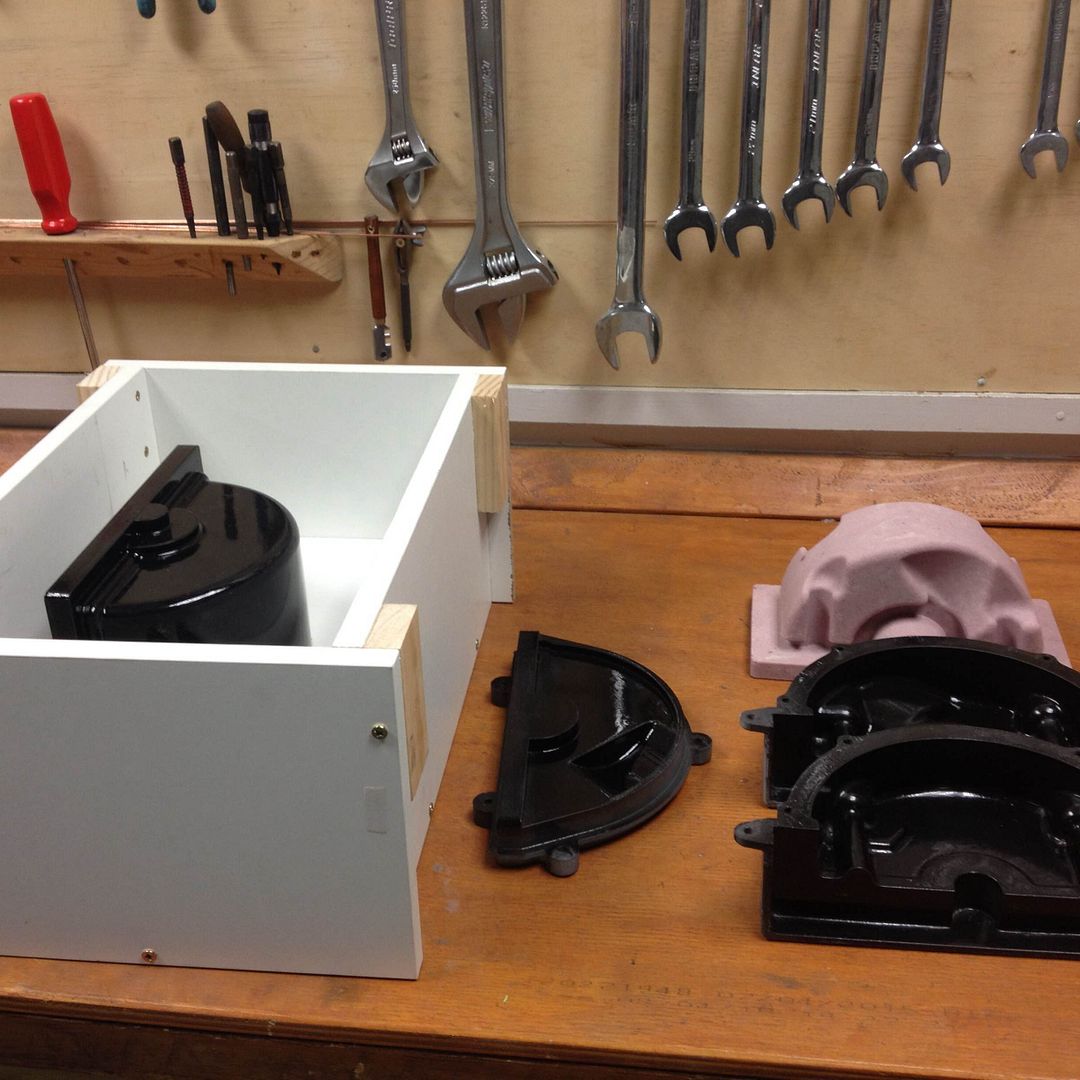

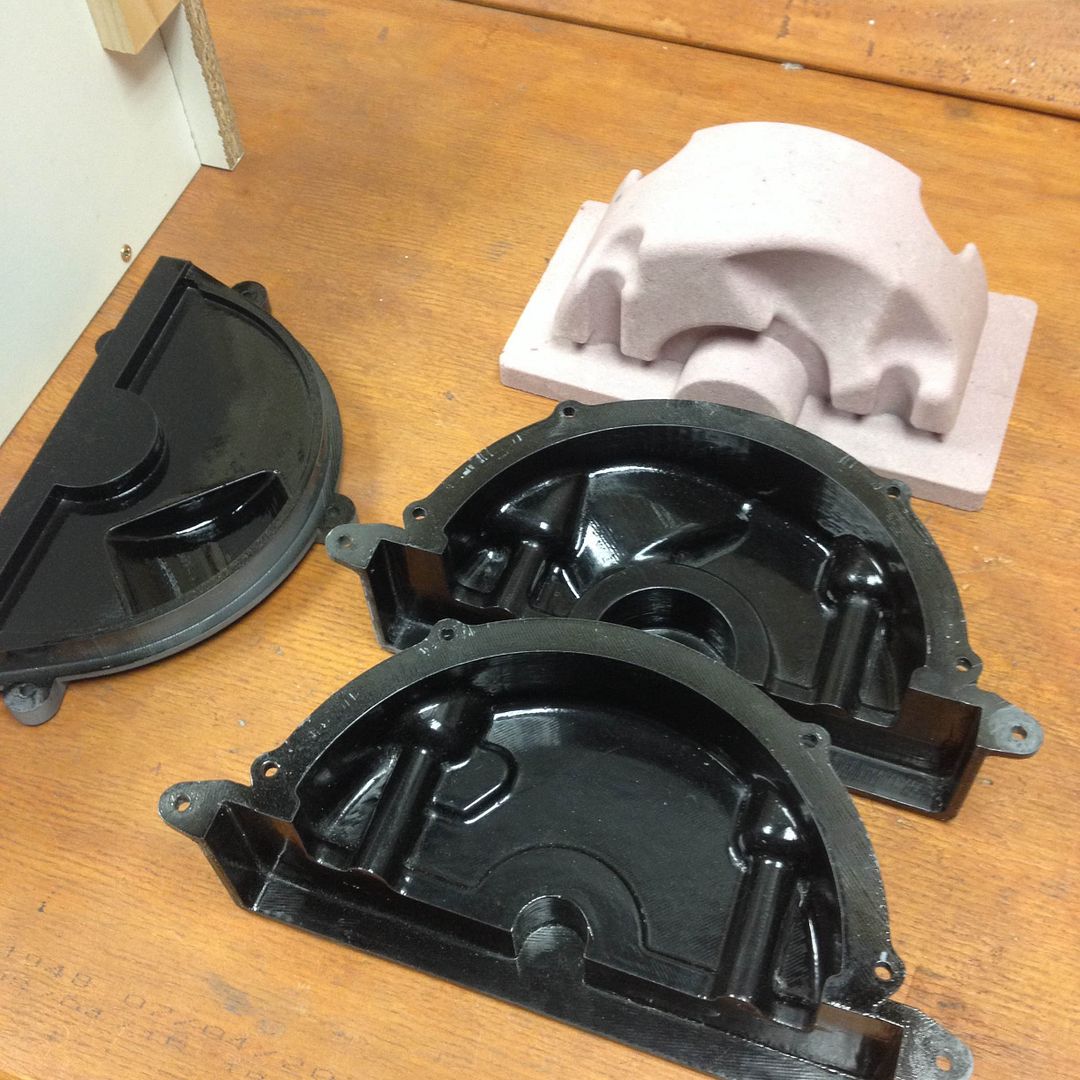

3D Printed Patters



Couple of fresh castings. Worked well. :D


bzrse7en
Posts: 1477
Joined: Thu Apr 23, 2009 3:40 pm
Location: Rolleston Canterbury

Re: Bugatti Project

Post by bzrse7en » Tue Jan 24, 2017 5:44 pm

Lovely

User avatar
Not-a-Number
Paid Member
Posts: 880
Joined: Tue Sep 13, 2011 12:54 pm

Re: Bugatti Project

Post by Not-a-Number » Wed Feb 15, 2017 7:31 pm

Left hand hanger done.






So if anyone needs a set of hangers for their Bugatti Atlantic then let me know and I'll do you a deal! :lol:

User avatar
Not-a-Number
Paid Member
Posts: 880
Joined: Tue Sep 13, 2011 12:54 pm

Re: Bugatti Project

Post by Not-a-Number » Fri Mar 24, 2017 3:39 pm

Block machining! Not going to lie, its quite exciting!

Bores have cleaned up without any defects. Ports look a fraction off on some of the bores though so hopefully I can cut some valve seats that work!
